CZ series chemical centrifugal pump
manufacturer: Shanghai MeiYan Yi Pump & Valve Co., Ltd.
Eml: sales@1bengfa.com
Tel: +86 (21) 5640 2009
Mob: +86 138 1691 3072（WeChat Same Account）

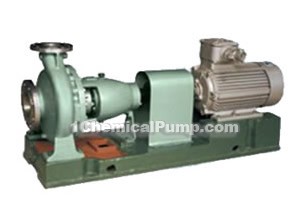

product drawing
CZ series chemical centrifugal pumps
summary
CZ series standard chemical pump is horizontal, single stage, single suction pump, its size and performance conforms to DIN24256/ISO2858 standard.
CZ series standard chemical pump performance range includes IH series standard chemical pump performance and its efficiency, cavitation performance index exceeds IH model pumps, can exchange IH pump.
conveying low temperature or high temperature or liquid. Neuter or corrosive liquid. Clean or containing solid particles. Especially suitable for
Chemical and petroleum chemical industry
papermaking and pulp
Coating industry (degrease, phosphating, electrophoresis, etc.)
flow：2000m/s
head：160m
rotate speed：1450～2900r/min
type meaning
flow can reach 2000 m3/h
head can reach 160m
working pressure 2.5MPav
working temperature -80℃～+300℃
Flat characteristics curve, cavitation value is low, high efficiency, in sub-load, keeping these properties

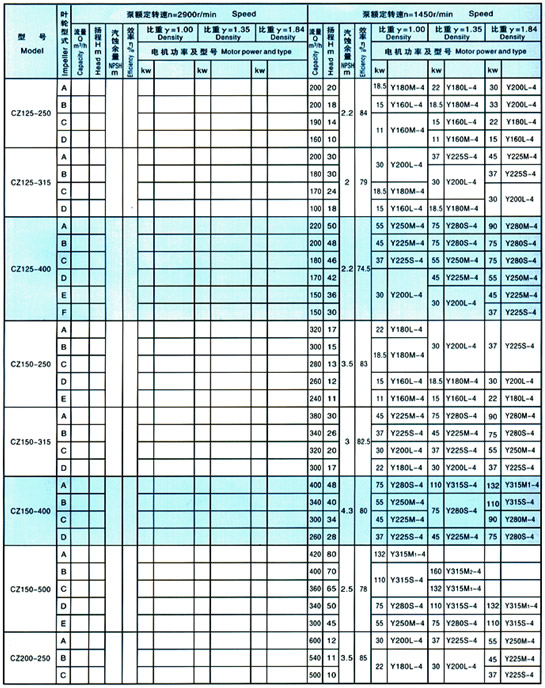

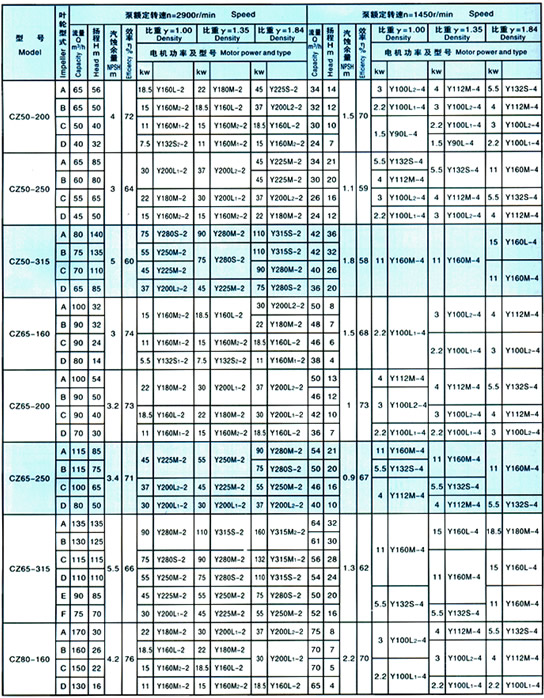

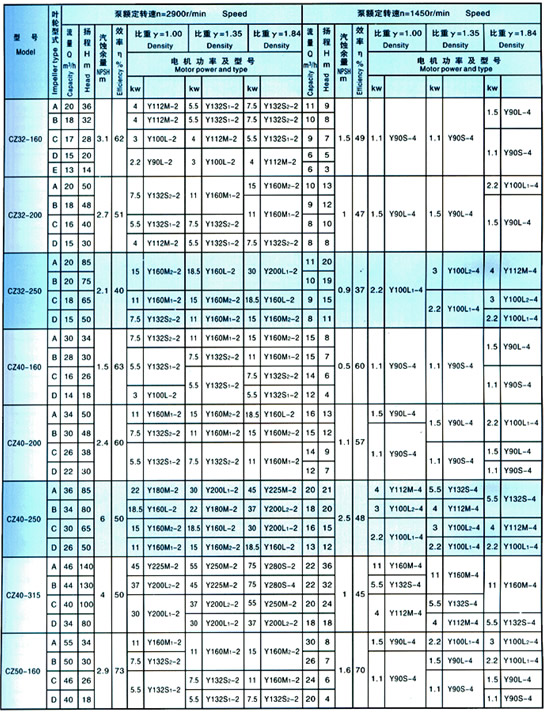

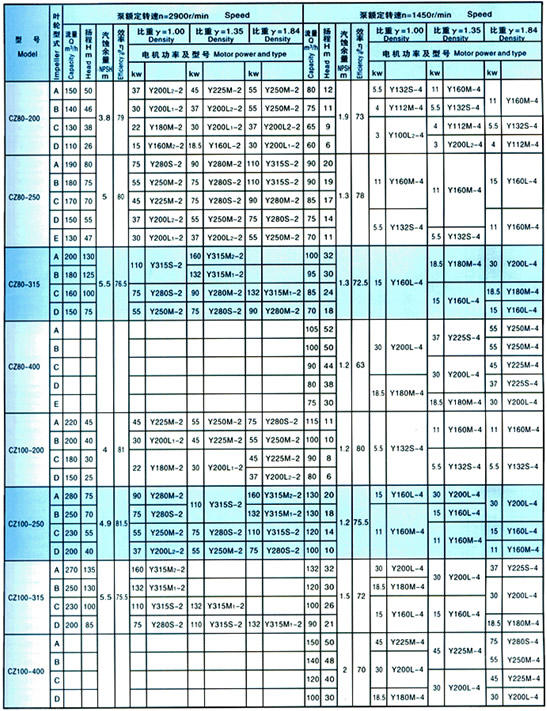

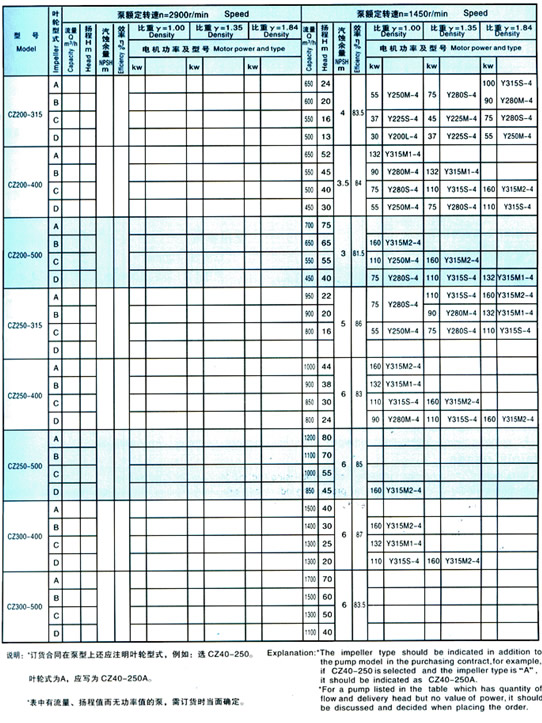

Table of property parameters
